1957800000 | Weidmüller

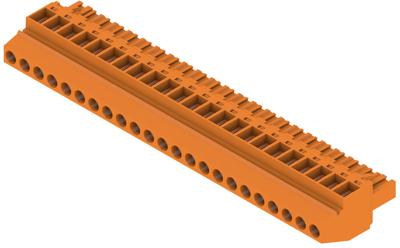

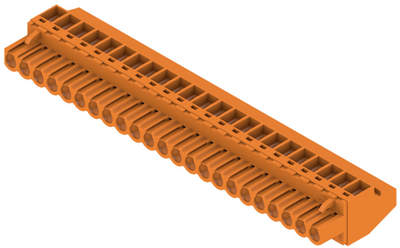

Socket header, 23 pole, pitch 5 mm, angled, orange, 1957800000
Order No.: 52P7879
EAN: 4032248636952
MPN:
1957800000
BLZP 5.00HC/23/90 SN OR BX
Unit Price (€ / pc.)
19.2542 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
19.25 € *
Price list
Quantity
Price per unit*
1 pcs.
19.2542 €
10 pcs.
17.9214 €
50 pcs.
16.4815 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female connector, 1957800000, Weidmüller
PCB connectors, closed sideways, 5.00 mm, no. of poles: 23, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 23 A | |
| Grid | 5 mm | |
| Pin number | 23 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | screw connection | |
| Contact type | socket | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
