1954480000 | Weidmüller

Socket header, 3 pole, pitch 5 mm, straight, orange, 1954480000

Order No.: 52P7790
EAN: 4032248633197
MPN:
1954480000
BLZP 5.00HC/03/180 SN OR BX

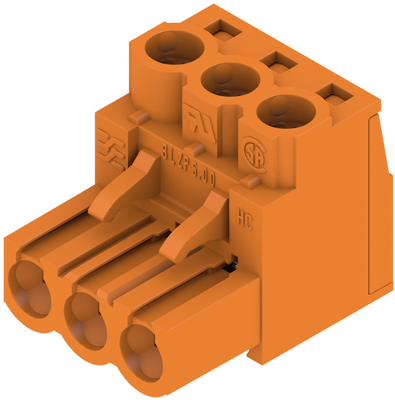

1954480000 Weidmüller PCB Connection Systems Image 1

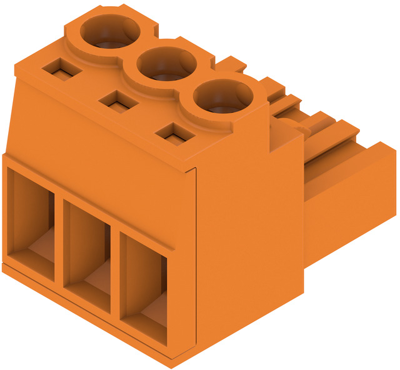

1954480000 Weidmüller PCB Connection Systems Image 2

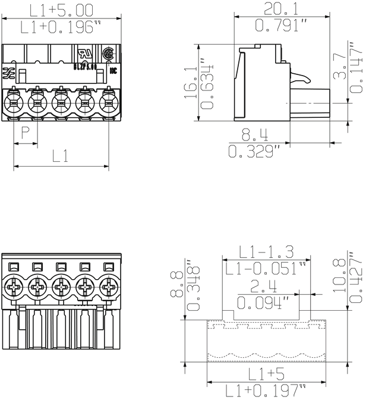

1954480000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
1.8564 € *
Available in 6 Days: 600 pcs. - if ordered today
Total Price:
1.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.8564 €

Female connector, 1954480000, Weidmüller

Printed circuit board connector, closed sideways, 5.00 mm, no. of poles: 3, tin-plated, orange, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Pin number 3 pole
Number of rows 1
Colour orange
Rated current 23 A
contact surface tin-plated
Connection screw connection
Orientation straight
Additional parts equipped
Rated voltage 400 V
Contact type socket
Grid 5 mm
Version socket header
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
