1954430000 | Weidmüller

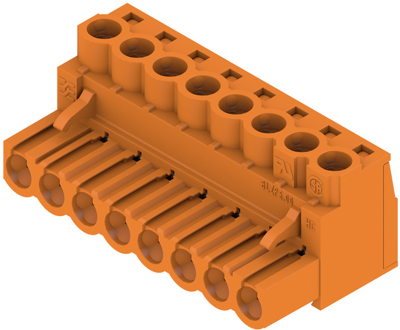

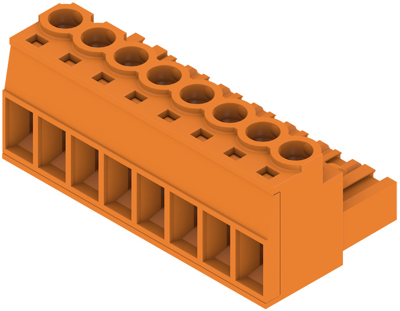

Socket header, 8 pole, pitch 5 mm, straight, orange, 1954430000

Order No.: 52P7785
EAN: 4032248633142
MPN:
1954430000
BLZP 5.00HC/08/180 SN OR BX
1954430000 Weidmüller PCB Connection Systems Image 1
1954430000 Weidmüller PCB Connection Systems Image 2
1954430000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
4.7124 € *
Available in 6 Days: 210 pcs. - if ordered today
Total Price:
4.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.7124 €

Female connector, 1954430000, Weidmüller

Printed circuit board connectors, closed sideways, 5.00 mm, no. of poles: 8, tin-plated, orange, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Rated voltage 400 V
Rated current 23 A
Grid 5 mm
Number of rows 1
Orientation straight
contact surface tin-plated
Version socket header
Colour orange
Connection screw connection
Pin number 8 pole
Additional parts equipped
Contact type socket
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
