1954400000 | Weidmüller

Socket header, 11 pole, pitch 5 mm, straight, orange, 1954400000

Order No.: 52P7782
EAN: 4032248633111
MPN:
1954400000
BLZP 5.00HC/11/180 SN OR BX

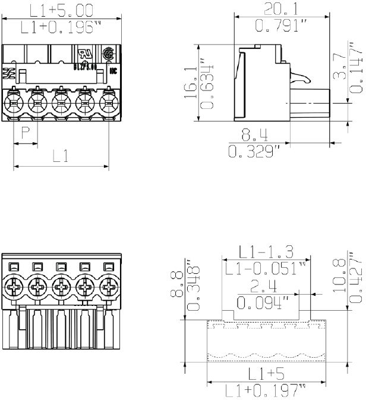

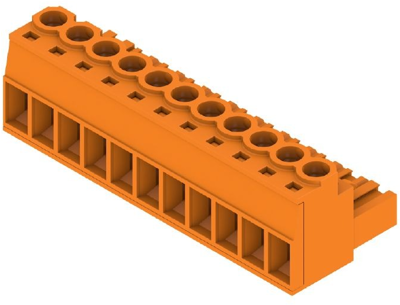

1954400000 Weidmüller PCB Connection Systems Image 1
1954400000 Weidmüller PCB Connection Systems Image 2
1954400000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
6.3903 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
6.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.3903 €

Female connector, 1954400000, Weidmüller

PCB Connector, lateral closed, 5.00 mm, no. of poles: 11, tin plated, orange, Box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Colour orange
contact surface tin-plated
Rated current 23 A
Grid 5 mm
Pin number 11 pole
Version socket header
Additional parts equipped
Orientation straight
Connection screw connection
Contact type socket
Rated voltage 400 V
Number of rows 1
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
