1950690000 | Weidmüller
Pin header, 12 pole, pitch 5.08 mm, angled, black, 1950690000
Order No.: 52P7660
EAN: 4032248628995
MPN:
1950690000
BLZP 5.08HC/12/270F SN BK BX
Unit Price (€ / pc.)
7.4018 € *
Standard delivery time from the manufacturer is: 8 Weeks

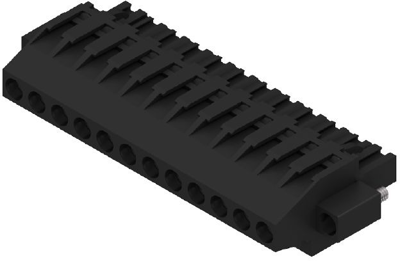

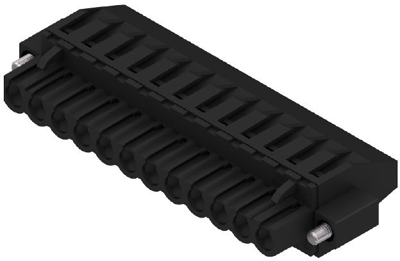

Male connector, 1950690000, Weidmüller
PCB Connector, Male Connector, Flange, 5.08 mm, No. of Poles: 12, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 12 pole | |
| Grid | 5.08 mm | |
| Connection | screw connection | |
| Orientation | angled | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 23 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
