1950670000 | Weidmüller
Pin header, 11 pole, pitch 5.08 mm, angled, black, 1950670000
Order No.: 52P7658
EAN: 4032248629046
MPN:
1950670000
BLZP 5.08HC/11/270F SN BK BX
Unit Price (€ / pc.)
9.4367 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
9.44 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4367 €
10 pcs.
8.7941 €
50 pcs.
7.9968 €
*incl. VAT plus shipping costs
Subject to prior sale

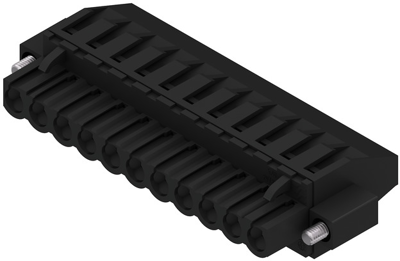

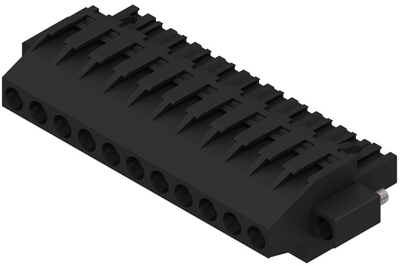

Male connector, 1950670000, Weidmüller
PCB connectors, male header, flange, 5.08 mm, no. of poles: 11, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 23 A | |
| Grid | 5.08 mm | |
| Pin number | 11 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | screw connection | |
| Contact type | socket | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
