1948790000 | Weidmüller

Pin header, 2 pole, pitch 5.08 mm, angled, orange, 1948790000

Order No.: 52P7544
EAN: 4032248626243
MPN:
1948790000
BLZP 5.08HC/02/270 SN OR BX

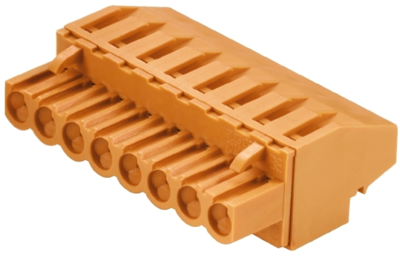

1948790000 Weidmüller PCB Connection Systems Image 1

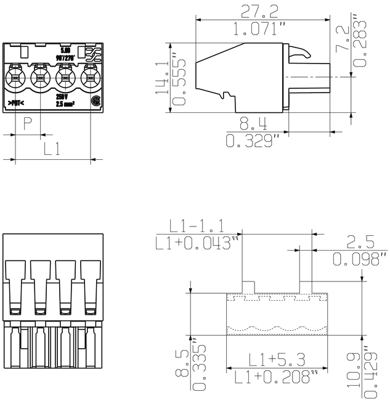

1948790000 Weidmüller PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.3804 € *
Available: 178 pcs.
Total Price:
1.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.3804 €

Male connector, 1948790000, Weidmüller

Printed circuit board connector, male header, lateral closed, 5.08 mm, no. of poles: 2, tinned, orange, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Grid 5.08 mm
Orientation angled
Connection screw connection
Contact type socket
Rated current 23 A
Additional parts equipped
Version socket header
Pin number 2 pole
contact surface tin-plated
Number of rows 1
Colour orange
Rated voltage 400 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
