1947500000 | Weidmüller
Pin header, 4 pole, pitch 10.16 mm, straight, black, 1947500000
Order No.: 52P7395
EAN: 4032248623785
MPN:
1947500000
SUZ 10.16HP/04/180G AG BK BX
Unit Price (€ / pc.)
10.8647 € *
Standard delivery time from the manufacturer is: 4 Weeks

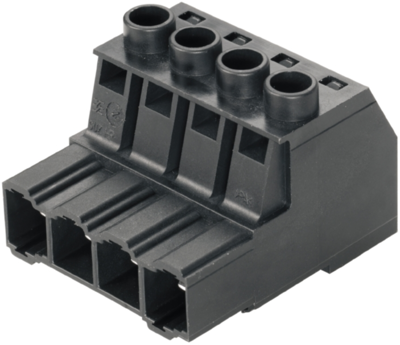

Male connector, 1947500000, Weidmüller
PCB connector, closed side, 10.16 mm, no. of poles: 4, silver plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contact surface | silver-plated | |
| Rated current | 78 A | |
| Grid | 10.16 mm | |
| Pin number | 4 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | screw connection | |
| Contact type | pin | |
| Rated voltage | 1 kV | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
