1946640000 | Weidmüller

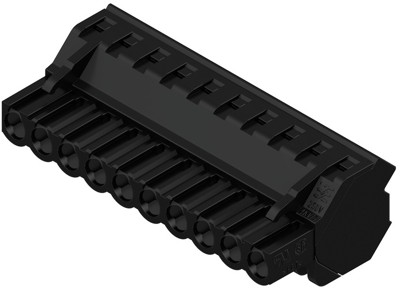

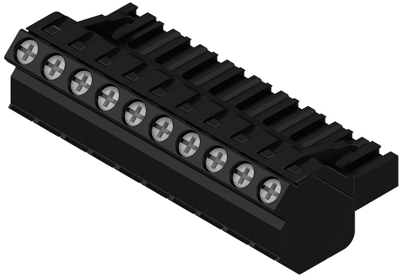

Pin header, 10 pole, pitch 5.08 mm, straight, black, 1946640000
Order No.: 52P7390
EAN: 4032248622412
MPN:
1946640000
BLZP 5.08HC/10/225 SN BK BX
Unit Price (€ / pc.)
7.2590 € *
Standard delivery time from the manufacturer is: 4 Weeks
Male connector, 1946640000, Weidmüller
PCB Connector, Male Connector, Side Closed, 5.08 mm, No. of Poles: 10, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 17.5 A | |
| Grid | 5.08 mm | |
| Pin number | 10 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | screw connection | |
| Contact type | socket | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
