1945490000 | Weidmüller

Socket header, 22 pole, pitch 5.08 mm, straight, orange, 1945490000

Order No.: 50P5705
EAN: 4032248620661
MPN:
1945490000
BLZP 5.08HC/22/180LH SN OR BX

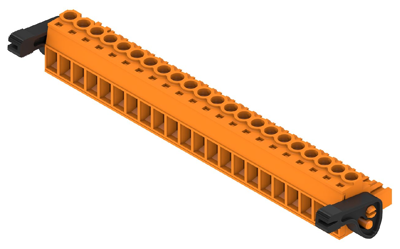

1945490000 Weidmüller PCB Connection Systems Image 1

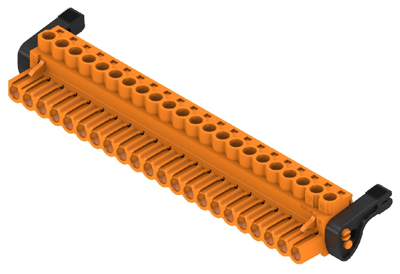

1945490000 Weidmüller PCB Connection Systems Image 2

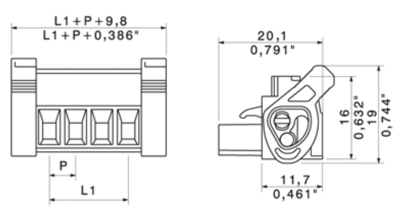

1945490000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
16.1959 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
16.20 € *
Price list
Quantity
Price per unit*
1 pcs.
16.1959 €
10 pcs.
15.1011 €
50 pcs.
14.1372 €
100 pcs.
13.2923 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1945490000, Weidmüller

Female plug with clamping-yoke screw system for connecting wire with straight (180°) outlet direction. The female connector provides space for labelling and can be coded. Fastened by means of a flange or release latch. It also provides an integrated plus/minus screw, protection against faulty insertion of the wire, and is delivered with an open clamping yoke.

Technical specifications
Filter Property Value
Colour orange
Connection pull-bar connection
Rated current 23 A
Orientation straight
Rated voltage 400 V
contact surface tin-plated
Contact type socket
Version socket header
Grid 5.08 mm
Number of rows 1
Pin number 22 pole
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
