1945300000 | Weidmüller

Socket header, 3 pole, pitch 5.08 mm, straight, orange, 1945300000

Order No.: 50P5447
EAN: 4032248619870
MPN:
1945300000
BLZP 5.08HC/03/180LH SN OR BX

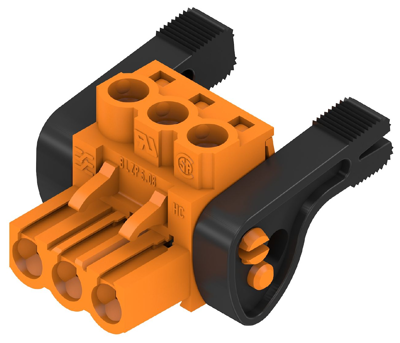

1945300000 Weidmüller PCB Connection Systems Image 1

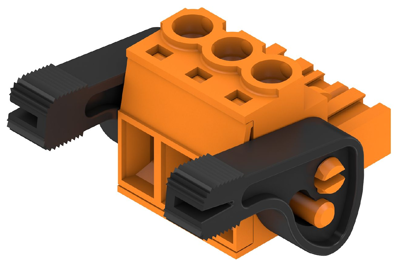

1945300000 Weidmüller PCB Connection Systems Image 2

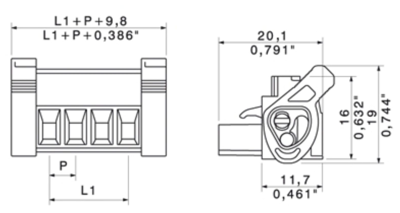

1945300000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
3.0940 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0940 €
10 pcs.
2.8679 €
50 pcs.
2.6656 €
100 pcs.
2.4990 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1945300000, Weidmüller

Female plug with clamping-yoke screw system for connecting wire with straight (180°) outlet direction. The female connector provides space for labelling and can be coded. Fastened by means of a flange or release latch. It also provides an integrated plus/minus screw, protection against faulty insertion of the wire, and is delivered with an open clamping yoke.

Technical specifications
Filter Property Value
Colour orange
Connection pull-bar connection
Rated current 23 A
Orientation straight
Rated voltage 400 V
contact surface tin-plated
Contact type socket
Version socket header
Grid 5.08 mm
Number of rows 1
Pin number 3 pole
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
