1945010000 | Weidmüller
Pin header, 20 pole, pitch 5.08 mm, straight, orange, 1945010000
Order No.: 52P7309
EAN: 4032248620135
MPN:
1945010000
BLZP 5.08HC/20/180LR SN OR BX
Unit Price (€ / pc.)
16.2197 € *
Available in 6 Days: 60 pcs. - if ordered today
Total Price:
16.22 € *
Price list
Quantity
Price per unit*
1 pcs.
16.2197 €
10 pcs.
15.0773 €
50 pcs.
13.8754 €
*incl. VAT plus shipping costs
Subject to prior sale

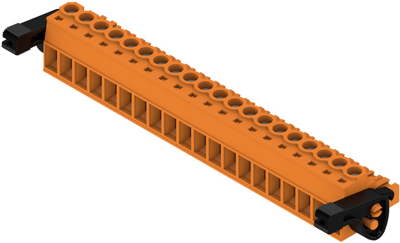

Male connector, 1945010000, Weidmüller
Printed circuit board connector, male header, release latch, 5.08 mm, no. of poles: 20, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Colour | orange | |
| Additional parts | equipped | |
| Pin number | 20 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Rated voltage | 400 V | |
| contact surface | tin-plated | |
| Version | socket header | |
| Rated current | 23 A | |
| Number of rows | 1 | |
| Grid | 5.08 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
