1944700000 | Weidmüller

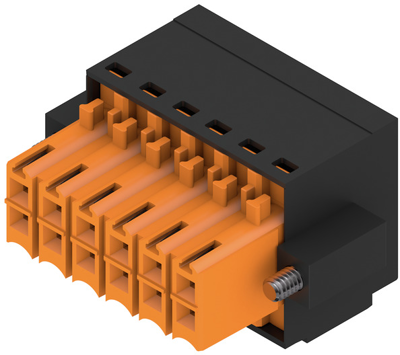

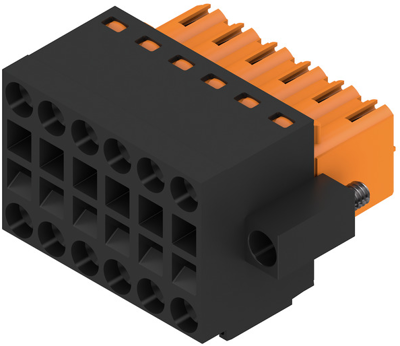

Socket header, 12 pole, pitch 3.5 mm, straight, black, 1944700000
Order No.: 52P7283
EAN: 4032248619634
MPN:
1944700000
B2L 3.50/12/180FQV6 SN BK BX
Unit Price (€ / pc.)
15.2915 € *
Standard delivery time from the manufacturer is: 10 Weeks
Female connector, 1944700000, Weidmüller
Printed circuit board connector, flange, 3.50 mm, no. of poles: 12, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.5 mm | |
| Pin number | 12 pole | |
| Colour | black | |
| Contact type | socket | |
| Rated current | 10.3 A | |
| Version | socket header | |
| Connection | tension clamp connection | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Rated voltage | 200 V | |
| contact surface | tin-plated | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
