1944630000 | Weidmüller

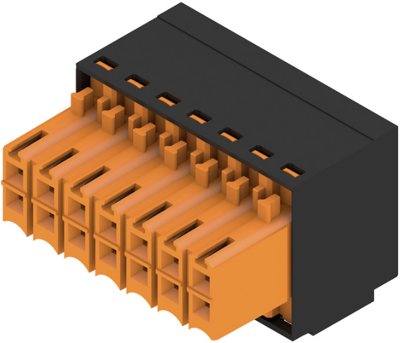

Socket header, 14 pole, pitch 3.5 mm, straight, black, 1944630000
Order No.: 52P7277
EAN: 4032248619566
MPN:
1944630000
B2L 3.50/14/180QV7 SN BK BX
Unit Price (€ / pc.)
17.4335 € *
Standard delivery time from the manufacturer is: 10 Weeks
Female connector, 1944630000, Weidmüller
PCB connector, closed sideways, 3.50 mm, no. of poles: 14, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | tension clamp connection | |
| Colour | black | |
| Additional parts | equipped | |
| Pin number | 14 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Rated voltage | 200 V | |
| contact surface | tin-plated | |
| Version | socket header | |
| Rated current | 10.3 A | |
| Number of rows | 2 | |
| Grid | 3.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
