1944480000 | Weidmüller
Pin header, 17 pole, pitch 5.08 mm, straight, black, 1944480000
Order No.: 52P7265
EAN: 4032248619054
MPN:
1944480000
BLZP 5.08HC/17/180F SN BK BX
Unit Price (€ / pc.)
10.1745 € *
Standard delivery time from the manufacturer is: 5 Weeks

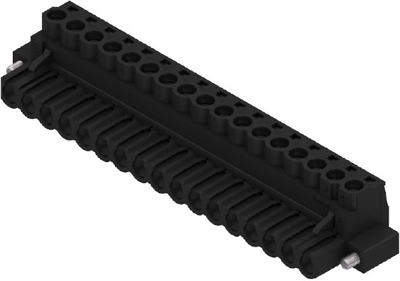

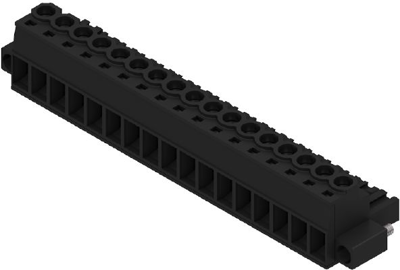

Male connector, 1944480000, Weidmüller
PCB connector, male header, flange, 5.08 mm, no. of poles: 17, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Colour | black | |
| Additional parts | equipped | |
| Pin number | 17 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Rated voltage | 400 V | |
| contact surface | tin-plated | |
| Version | socket header | |
| Rated current | 23 A | |
| Number of rows | 1 | |
| Grid | 5.08 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
