1943310000 | Weidmüller

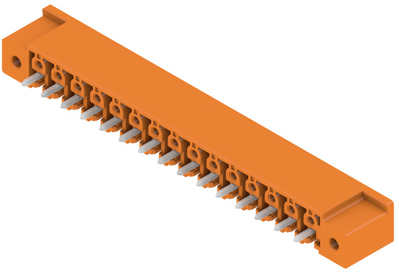

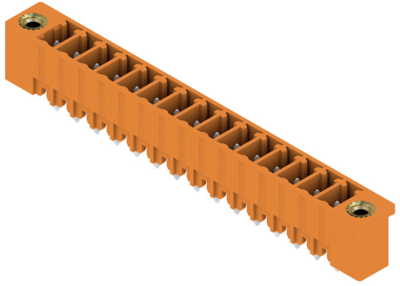

Pin header, 15 pole, pitch 3.81 mm, straight, orange, 1943310000
Order No.: 52P7169
EAN: 4032248654284
MPN:
1943310000
SC 3.81/15/180F 3.2SN OR BX
Unit Price (€ / pc.)
4.9980 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
5.00 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9980 €
10 pcs.
4.6410 €
50 pcs.
4.2126 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1943310000, Weidmüller
PCB Connector, Flange, THT Solder Termination, 3.81 mm, No. of Poles: 15, 180°, 3.2 mm, Tin Plated, Orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 320 V | |
| Orientation | straight | |
| Pin number | 15 pole | |
| Version | pin header | |
| Colour | orange | |
| Grid | 3.81 mm | |
| Rated current | 17.5 A | |
| Contact type | pin | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
