1943200000 | Weidmüller

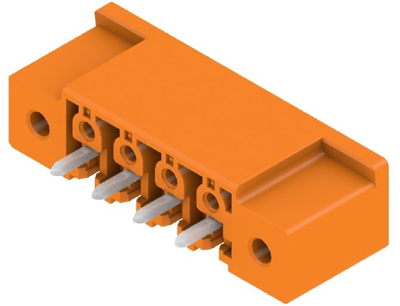

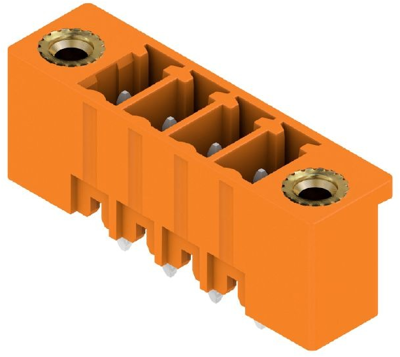

Pin header, 4 pole, pitch 3.81 mm, straight, orange, 1943200000
Order No.: 52P7158
EAN: 4032248654390
MPN:
1943200000
SC 3.81/04/180F 3.2SN OR BX
Unit Price (€ / pc.)
1.7731 € *
Available: 0 pcs.
Available in 6 Days: 132 pcs.
Leadtime: On Request **
Total Price:
1.77 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7731 €
10 pcs.
1.6541 €
50 pcs.
1.4875 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1943200000, Weidmüller
Printed Circuit Board Connector, flange, THT solder termination, 3.81 mm, no. of poles: 4, 180°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | orange | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
