1942040000 | Weidmüller

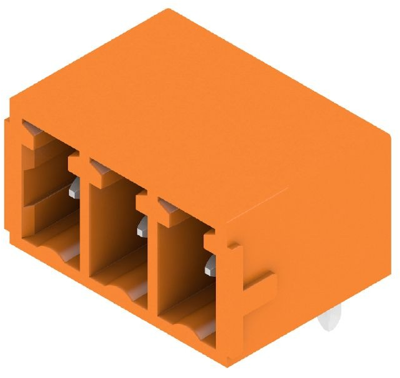

Pin header, 3 pole, pitch 3.81 mm, angled, orange, 1942040000
Order No.: 52P7075
EAN: 4032248655519
MPN:
1942040000
SC 3.81/03/90G 3.2SN OR BX
Unit Price (€ / pc.)
0.9044 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
0.90 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9044 €
10 pcs.
0.8330 €
50 pcs.
0.7616 €
100 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1942040000, Weidmüller
Printed Circuit Board Connector, closed side, THT solder termination, 3.81 mm, no. of poles: 3, 90°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 320 V | |
| Orientation | angled | |
| Pin number | 3 pole | |
| Version | pin header | |
| Colour | orange | |
| Grid | 3.81 mm | |
| Rated current | 17.5 A | |
| Contact type | pin | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
