1941030000 | Weidmüller
Socket header, 4 pole, pitch 3.81 mm, straight, orange, 1941030000
Order No.: 52P7024
EAN: 4032248655816
MPN:
1941030000
BCZ 3.81/04/180F SN OR BX
Unit Price (€ / pc.)
3.9151 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
3.92 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9151 €
10 pcs.
3.5938 €
50 pcs.
3.2725 €
100 pcs.
2.9393 €
*incl. VAT plus shipping costs
Subject to prior sale

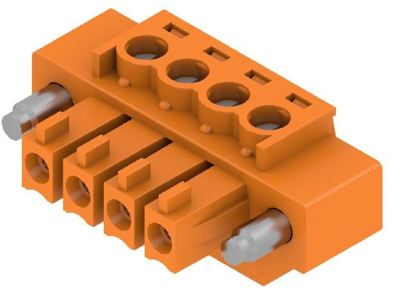

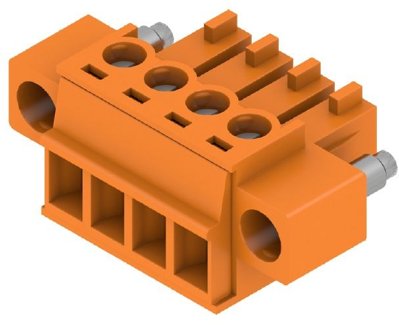

Female connector, 1941030000, Weidmüller
Printed circuit board connector, flange, 3.81 mm, number of poles: 4, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 17.5 A | |
| Version | socket header | |
| Number of rows | 1 | |
| Connection | screw connection | |
| Contact type | socket | |
| Additional parts | equipped | |
| Grid | 3.81 mm | |
| Pin number | 4 pole | |
| Rated voltage | 320 V | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Colour | orange |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
