1940710000 | Weidmüller

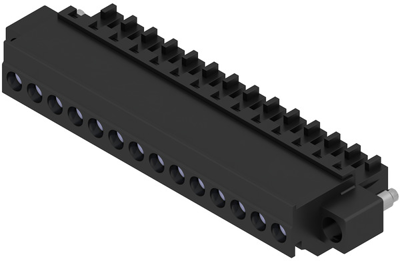

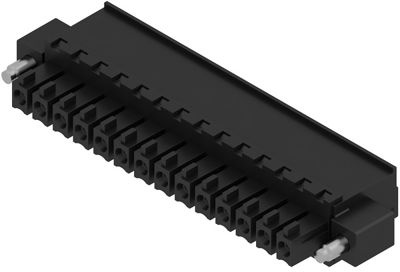

Socket header, 14 pole, pitch 3.81 mm, angled, black, 1940710000
Order No.: 52P6998
EAN: 4032248656127
MPN:
1940710000
BCZ 3.81/14/270F SN BK BX
Unit Price (€ / pc.)
8.8179 € *
Standard delivery time from the manufacturer is: 12 Weeks
Female connector, 1940710000, Weidmüller
PCB connectors, flange, 3.81 mm, no. of poles: 14, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 17.5 A | |
| Grid | 3.81 mm | |
| Pin number | 14 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | screw connection | |
| Contact type | socket | |
| Rated voltage | 320 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
