1940000000 | Weidmüller

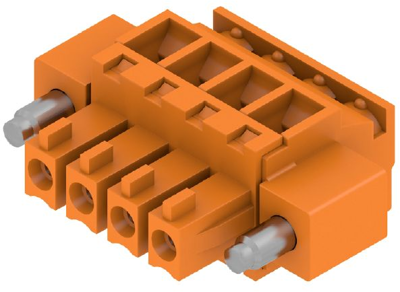

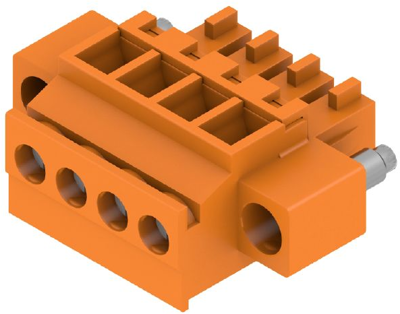

Socket header, 4 pole, pitch 3.81 mm, angled, orange, 1940000000
Order No.: 52P6950
EAN: 4032248656820
MPN:
1940000000
BCZ 3.81/04/90F SN OR BX
Unit Price (€ / pc.)
4.0460 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0460 €
10 pcs.
3.7247 €
50 pcs.
3.3796 €
100 pcs.
3.0464 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 1940000000, Weidmüller
Printed circuit board connector, flange, 3.81 mm, no. of poles: 4, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Grid | 3.81 mm | |
| Number of rows | 1 | |
| Orientation | angled | |
| contact surface | tin-plated | |
| Version | socket header | |
| Colour | orange | |
| Connection | screw connection | |
| Pin number | 4 pole | |
| Additional parts | equipped | |
| Contact type | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
