1934150000 | Weidmüller
Pin header, 32 pole, pitch 5.08 mm, straight, black, 1934150000
Order No.: 50P4250
EAN: 4032248589500
MPN:
1934150000
SLDV-THR 5.08/32 FLF4.5SN SW
Unit Price (€ / pc.)
20.2776 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
20.28 € *
Price list
Quantity
Price per unit*
1 pcs.
20.2776 €
10 pcs.
19.0043 €
25 pcs.
17.8857 €
50 pcs.
16.8980 €
*incl. VAT plus shipping costs
Subject to prior sale

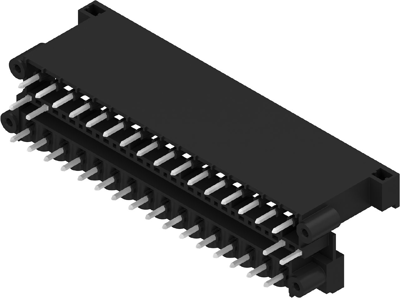

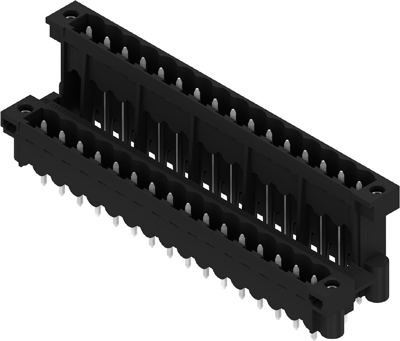

PCB plug-in connector, 1934150000, WEIDMÜLLER
PCB plug-in connector, male header, Flange / Solder flange, THT/THR solder connection, 5.08 mm, Number of poles: 32, 180°, Solder pin length (l): 4.5 mm, tinned, black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | solder connection | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| Number of rows | 2 | |
| Pin number | 32 pole | |
| Colour | black | |
| Version | pin header | |
| Rated current | 15 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
