1931710000 | Weidmüller
Plug, 10 pole, pitch 7.62 mm, straight, black, 1931710000
Order No.: 50P0755
EAN: 4032248581702
MPN:
1931710000
SVZ 7.62HP/10/180G SN BK BX
Unit Price (€ / pc.)
19.9682 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
19.97 € *
Price list
Quantity
Price per unit*
1 pcs.
19.9682 €
10 pcs.
17.9690 €
25 pcs.
16.8385 €
50 pcs.
15.8508 €
*incl. VAT plus shipping costs
Subject to prior sale

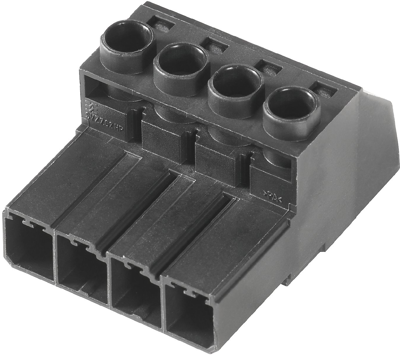

PCB plug-in connector, 1931710000, Weidmüller
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Connection | tension clamp connection | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Grid | 7.62 mm | |
| Number of rows | 1 | |
| Orientation | straight | |
| Version | plug housing | |
| Rated current | 57 A | |
| Pin number | 10 pole | |
| Rated voltage | 1000 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
