1930630000 | Weidmüller

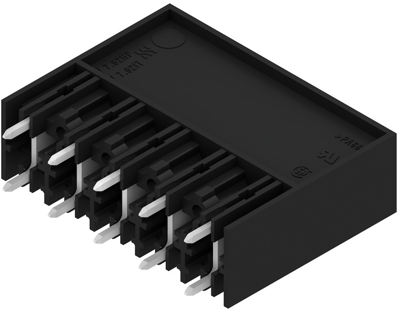

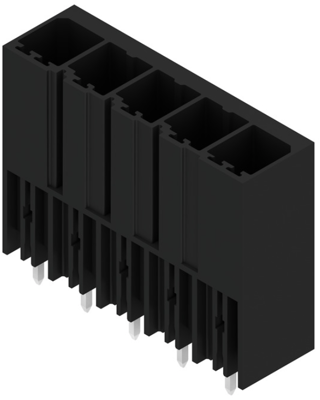

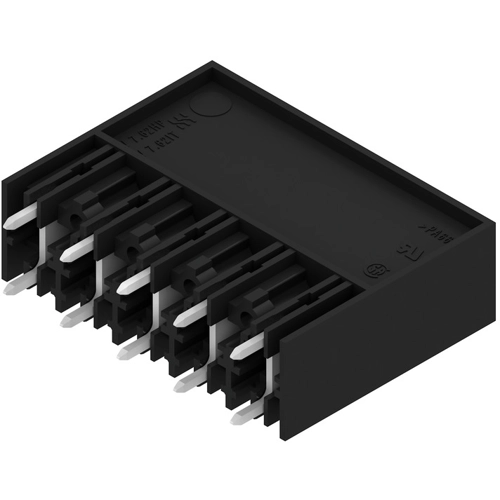

Pin header, 5 pole, pitch 7.62 mm, straight, black, 1930630000
Order No.: 52P6513
EAN: 4032248580606
MPN:
1930630000
SV 7.62HP/05/180G 3.5SN BK BX
Unit Price (€ / pc.)
3.8675 € *
Available in 6 Days: 240 pcs. - if ordered today
Male connector, 1930630000, Weidmüller
Board Connector, lateral closed, THT solder termination, 7.62 mm, no. of poles: 5, 180°, 3.5 mm, tin plated, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 5 pole | |
| Grid | 7.62 mm | |
| Connection | PCB connection | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Rated voltage | 1 kV | |
| Rated current | 57 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
