1930450000 | Weidmüller

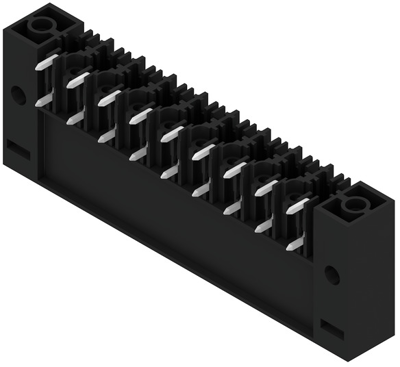

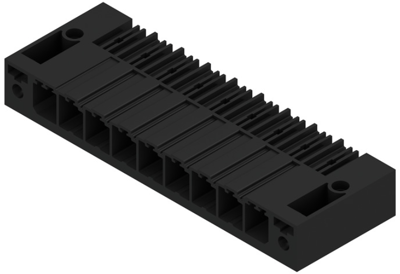

Pin header, 9 pole, pitch 7.62 mm, angled, black, 1930450000
Order No.: 52P6497
EAN: 4032248580422
MPN:
1930450000
SV 7.62HP/09/90F 3.5SN BK BX
Unit Price (€ / pc.)
9.8294 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
9.83 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8294 €
10 pcs.
9.1392 €
50 pcs.
8.3300 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1930450000, Weidmüller
PCB connectors, snap-in flange, THT solder termination, 7.62 mm, no. of poles: 9, 90°, 3.5 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 1 kV | |
| Rated current | 57 A | |
| Orientation | angled | |
| Pin number | 9 pole | |
| Grid | 7.62 mm |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
