1930320000 | Weidmüller
Pin header, 7 pole, pitch 7.62 mm, angled, black, 1930320000
Order No.: 52P6485
EAN: 4032248580194
MPN:
1930320000
SV 7.62HP/07/90G 3.5SN BK BX
Unit Price (€ / pc.)
7.4375 € *
Available: 0 pcs.
Available in 6 Days: 60 pcs.
Leadtime: On Request **
Total Price:
7.44 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4375 €
10 pcs.
6.9139 €
50 pcs.
6.2951 €
*incl. VAT plus shipping costs
**Subject to prior sale

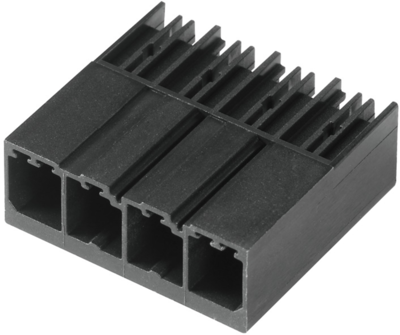

Male connector, 1930320000, Weidmüller
Printed Circuit Board Connector, lateral closed, THT solder termination, 7.62 mm, no. of poles: 7, 90°, 3.5 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | Leiterplattenanschluss | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 1 kV | |
| Rated current | 57 A | |
| Orientation | abgewinkelt | |
| Pin number | 7-polig | |
| Grid | 7.62 mm |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
