1929820000 | Weidmüller
Socket, 10 pole, pitch 7.62 mm, straight, black, 1929820000
Order No.: 50P0647
EAN: 4032248579594
MPN:
1929820000
BVZ 7.62HP/10/180SFC SN BK BX
Unit Price (€ / pc.)
16.1721 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
16.17 € *
Price list
Quantity
Price per unit*
1 pcs.
16.1721 €
10 pcs.
14.5656 €
50 pcs.
13.6493 €
100 pcs.
12.8520 €
*incl. VAT plus shipping costs
Subject to prior sale

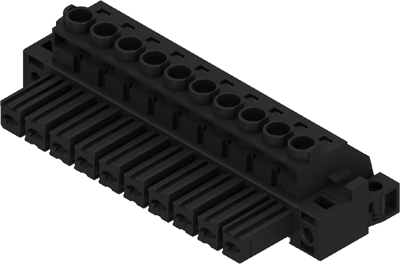

PCB plug-in connector, 1929820000, Weidmüller
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Contact type | socket | |
| Pin number | 10 pole | |
| Grid | 7.62 mm | |
| Connection | tension clamp connection | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Rated voltage | 1000 V | |
| Rated current | 57 A | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
