1929430000 | Weidmüller

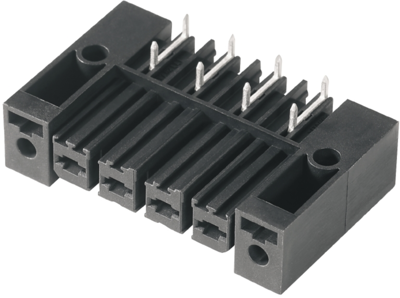

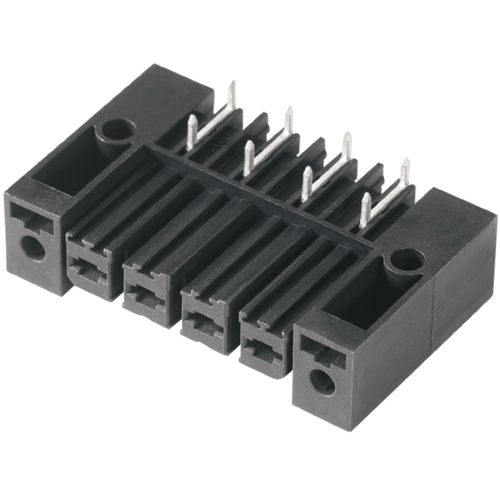

Socket header, 4 pole, pitch 7.62 mm, angled, black, 1929430000
Order No.: 52P6420
EAN: 4032248578771
MPN:
1929430000
BVL 7.62HP/04/270FI 3.5SN BK BX
Unit Price (€ / pc.)
5.0932 € *
Standard delivery time from the manufacturer is: 9 Weeks
Female connector, 1929430000, Weidmüller

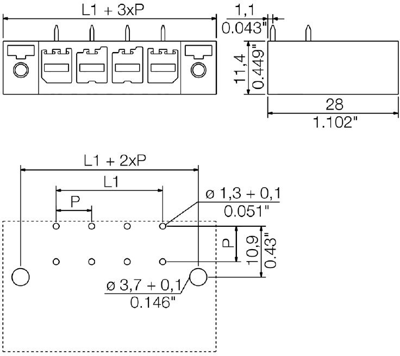

PCB connector, latching flange inverted, THT solder termination, 7.62 mm, poles: 4, 270°, 3.5 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | PCB connection | |
| Colour | black | |
| Additional parts | equipped | |
| Pin number | 4 pole | |
| Contact type | socket | |
| Orientation | angled | |
| Rated voltage | 1 kV | |
| contact surface | tin-plated | |
| Version | socket header | |
| Rated current | 56.8 A | |
| Number of rows | 1 | |
| Grid | 7.62 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
