1928410000 | Weidmüller

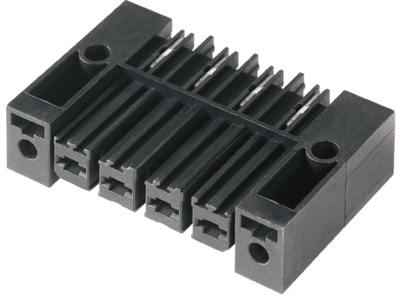

Socket header, 4 pole, pitch 7.62 mm, angled, black, 1928410000
Order No.: 52P6384
EAN: 4032248577637
MPN:
1928410000
BVL 7.62HP/04/90FI 3.5SN BK BX
Unit Price (€ / pc.)
5.0932 € *
Standard delivery time from the manufacturer is: 9 Weeks
Female connector, 1928410000, Weidmüller
PCB connector, latching flange inverted, THT solder termination, 7.62 mm, poles: 4, 90°, 3.5 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 56.8 A | |
| Grid | 7.62 mm | |
| Pin number | 4 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | socket | |
| Rated voltage | 1 kV | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
