1895020000 | Weidmüller

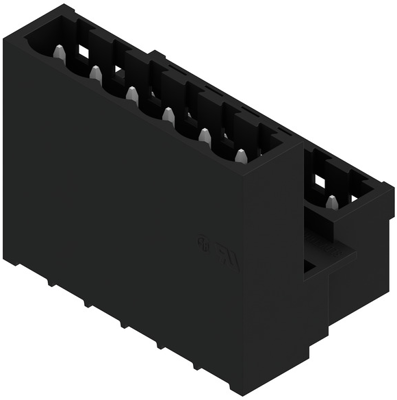

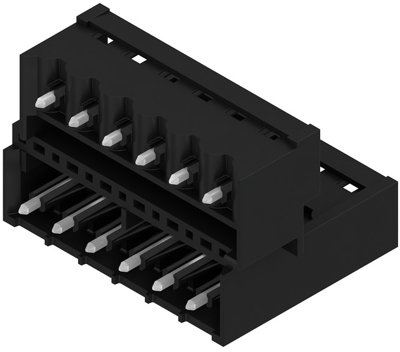

Pin header, 12 pole, pitch 5 mm, straight, black, 1895020000
Order No.: 52P5248
EAN: 4032248509737
MPN:
1895020000
SLDV-THR 5.00/12/180G 1.5SN BK BX
Unit Price (€ / pc.)
4.4982 € *
Standard delivery time from the manufacturer is: 6 Weeks
Male connector, 1895020000, Weidmüller
Printed Circuit Board Connector, closed side, THT/THR solder termination, 5.00 mm, no. of poles: 12, 180°, 1.5 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | PCB connection | |
| Colour | black | |
| Additional parts | equipped | |
| Pin number | 12 pole | |
| Contact type | pin | |
| Orientation | straight | |
| Rated voltage | 400 V | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 15 A | |
| Number of rows | 2 | |
| Grid | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
