1891190000 | Weidmüller

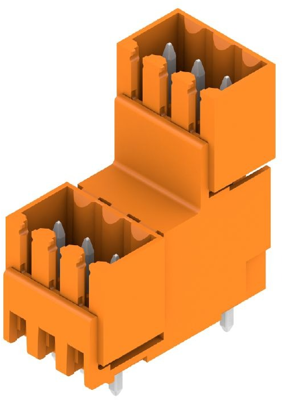

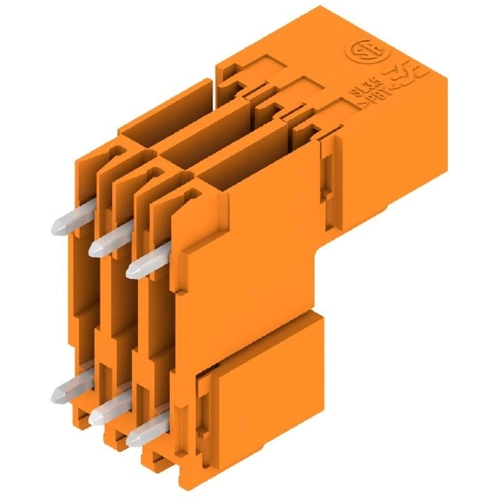

Pin header, 6 pole, pitch 3.5 mm, straight, orange, 1891190000
Order No.: 52P5204
EAN: 4032248500734
MPN:
1891190000
SLD 3.50V/06/180G 3.2SN OR BX
Unit Price (€ / pc.)
3.2130 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
3.21 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2130 €
10 pcs.
2.9512 €
50 pcs.
2.7013 €
100 pcs.
2.4276 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1891190000, Weidmüller
Board Connector, lateral closed, THT solder termination, 3.50 mm, no. of poles: 6, 180°, 3.2 mm, tin plated, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.5 mm | |
| Pin number | 6 pole | |
| Colour | orange | |
| Contact type | pin | |
| Rated current | 10.5 A | |
| Version | pin header | |
| Connection | PCB connection | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Rated voltage | 200 V | |
| contact surface | tin-plated | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
