1891120000 | Weidmüller

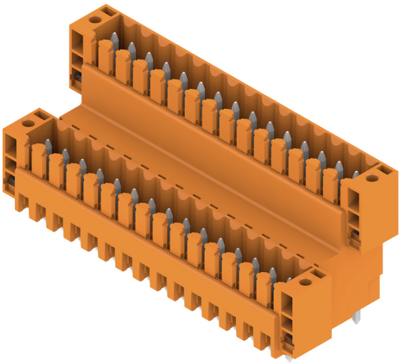

Pin header, 30 pole, pitch 3.5 mm, straight, orange, 1891120000
Order No.: 52P5199
EAN: 4032248500642
MPN:
1891120000
SLD 3.50 V/30/180F 3.2 SN OR BX
Unit Price (€ / pc.)
16.1602 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
16.16 € *
Price list
Quantity
Price per unit*
1 pcs.
16.1602 €
10 pcs.
14.8512 €
50 pcs.
13.5184 €
100 pcs.
12.1737 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1891120000, Weidmüller
Printed circuit board connectors, flange, THT solder termination, 3.50 mm, no. of poles: 30, 180°, 3.2 mm, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 10.5 A | |
| Grid | 3.5 mm | |
| Pin number | 30 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 200 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
