1890660000 | Weidmüller

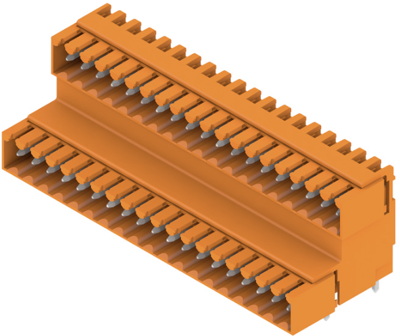

Pin header, 38 pole, pitch 3.5 mm, angled, orange, 1890660000
Order No.: 52P5176
EAN: 4032248499687
MPN:
1890660000
SLD 3.50V/38/90G 3.2SN OR BX
Unit Price (€ / pc.)
19.5636 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
19.56 € *
Price list
Quantity
Price per unit*
1 pcs.
19.5636 €
10 pcs.
17.9928 €
50 pcs.
16.3744 €
100 pcs.
14.7441 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1890660000, Weidmüller
PCB Connector, Side-Closed, THT Solder Termination, 3.50 mm, No. of Poles: 38, 90°, 3.2 mm, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 10.5 A | |
| Grid | 3.5 mm | |
| Pin number | 38 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 200 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
