1889350000 | Weidmüller

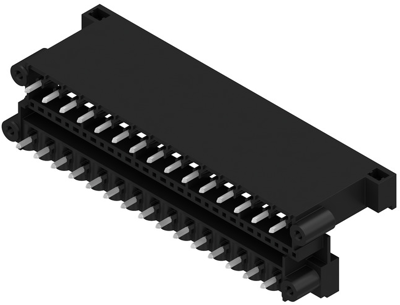

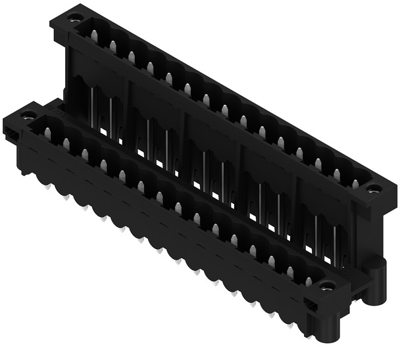

Pin header, 30 pole, pitch 5.08 mm, straight, black, 1889350000
Order No.: 52P5113
EAN: 4032248495696
MPN:
1889350000
SLDV-THR 5.08/30/180F 3.2SN BK BX
Unit Price (€ / pc.)
19.9920 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
19.99 € *
Price list
Quantity
Price per unit*
1 pcs.
19.9920 €
10 pcs.
18.3855 €
50 pcs.
16.9099 €
100 pcs.
15.3986 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1889350000, Weidmüller
PCB Connector, Male Connector, Flange, THT/THR Solder Termination, 5.08 mm, No. of Poles: 30, 180°, 3.2 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 30 pole | |
| Grid | 5.08 mm | |
| Connection | PCB connection | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 15 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
