1883300000 | Weidmüller

Pin header, 38 pole, pitch 5 mm, straight, black, 1883300000

Order No.: 52P4829
EAN: 4032248487653
MPN:
1883300000
SLDV-THR 5.00/38/180FLF 3.2SN BK BX

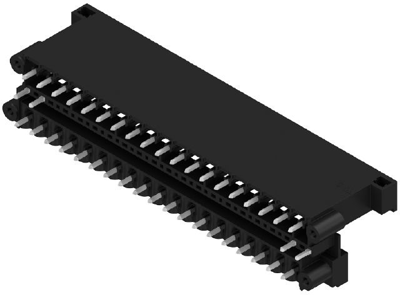

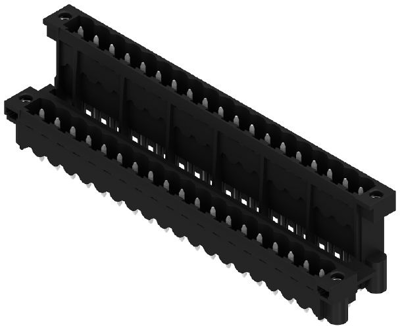

1883300000 Weidmüller PCB Connection Systems Image 1
1883300000 Weidmüller PCB Connection Systems Image 2
1883300000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
18.7068 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
18.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
18.7068 €

Male connector, 1883300000, Weidmüller

Printed circuit board connector, flange / solder flange, THT/THR solder termination, 5.00 mm, no. of poles: 38, 180°, 3.2 mm, tin plated, black, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Colour black
contact surface tin-plated
Rated current 15 A
Grid 5 mm
Pin number 38 pole
Version pin header
Additional parts equipped
Orientation straight
Connection PCB connection
Contact type pin
Rated voltage 400 V
Number of rows 2
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
