1883000000 | Weidmüller

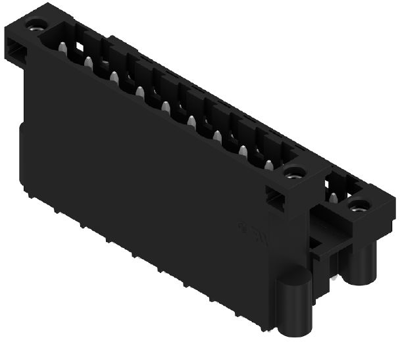

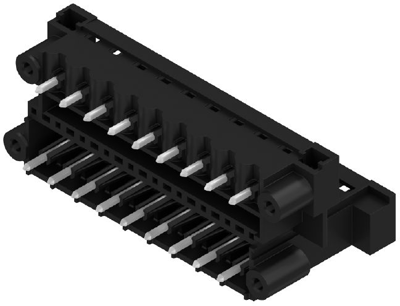

Pin header, 18 pole, pitch 5 mm, straight, black, 1883000000

Order No.: 52P4826
EAN: 4032248487189
MPN:
1883000000
SLDV-THR 5.00/18/180F 3.2SN BK BX
1883000000 Weidmüller PCB Connection Systems Image 1
1883000000 Weidmüller PCB Connection Systems Image 2
1883000000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
9.8651 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
9.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.8651 €

Male connector, 1883000000, Weidmüller

PCB Connector, flange, THT/THR solder termination, 5.00 mm, no. of poles: 18, 180°, 3.2 mm, tin plated, black, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Colour black
contact surface tin-plated
Rated current 15 A
Grid 5 mm
Pin number 18 pole
Version pin header
Additional parts equipped
Orientation straight
Connection PCB connection
Contact type pin
Rated voltage 400 V
Number of rows 2
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
