1882990000 | Weidmüller

Pin header, 16 pole, pitch 5 mm, straight, black, 1882990000

Order No.: 52P4825
EAN: 4032248487172
MPN:
1882990000
SLDV-THR 5.00/16/180F 3.2SN BK BX

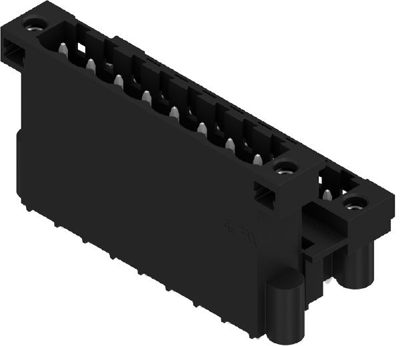

1882990000 Weidmüller PCB Connection Systems Image 1

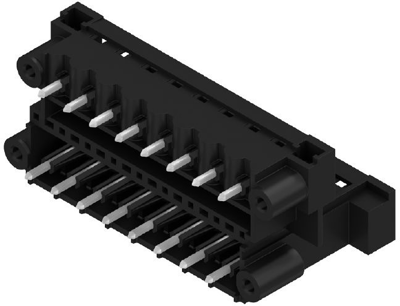

1882990000 Weidmüller PCB Connection Systems Image 2
1882990000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
9.1154 € *
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
9.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.1154 €

Male connector, 1882990000, Weidmüller

Printed Circuit Board Connector, flange, THT/THR solder termination, 5.00 mm, no. of poles: 16, 180°, 3.2 mm, tin plated, black, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Rated voltage 400 V
Rated current 15 A
Grid 5 mm
Number of rows 2
Orientation straight
contact surface tin-plated
Version pin header
Colour black
Connection PCB connection
Pin number 16 pole
Additional parts equipped
Contact type pin
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
