1881390000 | Weidmüller

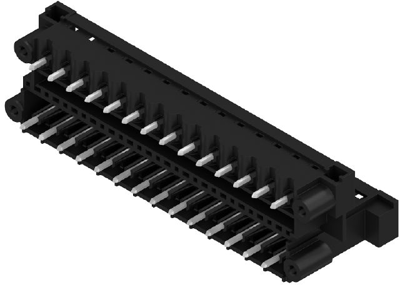

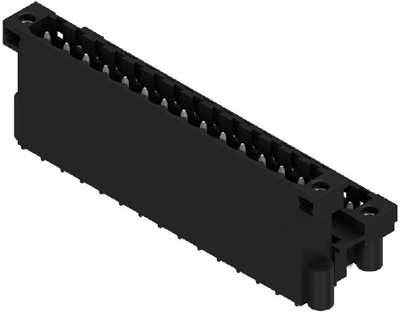

Pin header, 28 pole, pitch 5 mm, straight, black, 1881390000
Order No.: 52P4806
EAN: 4032248482733
MPN:
1881390000
SLDV-THR 5.00/28/180F 3.2SN BK BX
Unit Price (€ / pc.)
18.9805 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
18.98 € *
Price list
Quantity
Price per unit*
1 pcs.
18.9805 €
10 pcs.
17.4692 €
50 pcs.
15.8984 €
100 pcs.
14.3038 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1881390000, Weidmüller
PCB Connector, Flange, THT/THR Solder Termination, 5.00 mm, No. of Poles: 28, 180°, 3.2 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 15 A | |
| Grid | 5 mm | |
| Pin number | 28 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
