1877840000 | Weidmüller

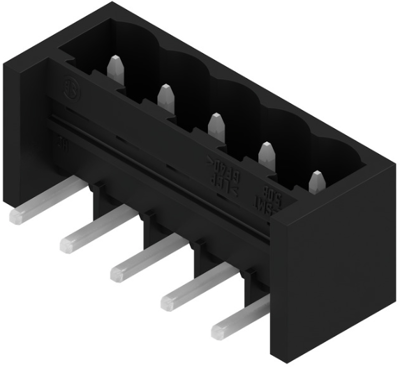

Pin header, 5 pole, pitch 5.08 mm, angled, black, 1877840000
Order No.: 52P4674
EAN: 4032248468492
MPN:
1877840000
SL-SMT 5.08HC/05/270GH 3.2SN BK RL
Unit Price (€ / pc.)
2.5942 € *
Standard delivery time from the manufacturer is: 8 Weeks
Male connector, 1877840000, Weidmüller
Printed Circuit Board (PCB) Connector, Male Connector, Side-Closed, THT/THR Solder Termination, 5.08 mm, No. of Poles: 5, 270°, 3.2 mm, tinned, black, Tape (Ø 33)
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 27.5 A | |
| contact surface | tin-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Orientation | angled | |
| Rated voltage | 400 V | |
| Connection | PCB connection | |
| Pin number | 5 pole | |
| Version | pin header | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
