1877600000 | Weidmüller

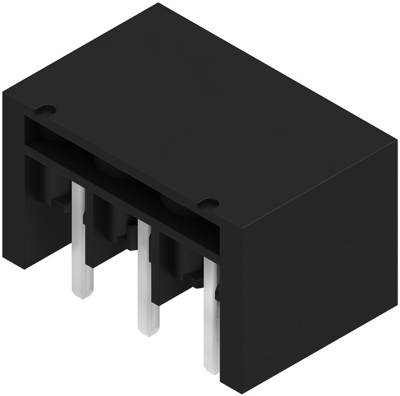

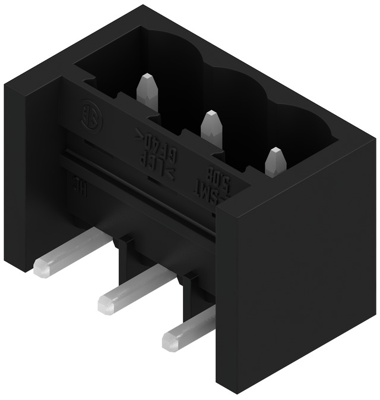

Pin header, 3 pole, pitch 5.08 mm, angled, black, 1877600000
Order No.: 52P4650
EAN: 4032248468195
MPN:
1877600000
SL-SMT 5.08HC/03/270GH 1.5SN BK RL
Unit Price (€ / pc.)
1.6779 € *
Available: 0 pcs.
Available in 6 Days: 670 pcs.
Leadtime: On Request **
Male connector, 1877600000, Weidmüller
PCB Connector, Male Header, Side Closed, THT/THR Solder Termination, 5.08 mm, No. of Poles: 3, 270°, 1.5 mm, Tin Plated, Black, Tape (Ø 33)
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 27.5 A | |
| Orientation | angled | |
| Pin number | 3 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
