1877520000 | Weidmüller
Pin header, 5 pole, pitch 5.08 mm, angled, black, 1877520000
Order No.: 52P4642
EAN: 4032248468140
MPN:
1877520000
SL-SMT 5.08HC/05/270GL 3.2SN BK BX
Unit Price (€ / pc.)
2.9393 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
2.94 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9393 €
10 pcs.
2.7370 €
50 pcs.
2.4633 €
*incl. VAT plus shipping costs
**Subject to prior sale

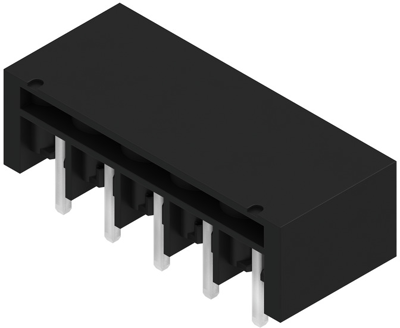

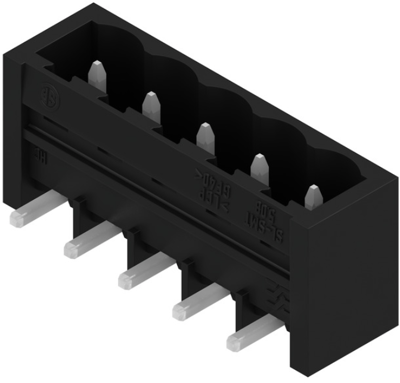

Male connector, 1877520000, Weidmüller
Printed Circuit Board Connector, Male Header, Side Closed, THT/THR Solder Termination, 5.08 mm, No. of Poles: 5, 270°, 3.2 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 27.5 A | |
| Orientation | angled | |
| Pin number | 5 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
