1877210000 | Weidmüller

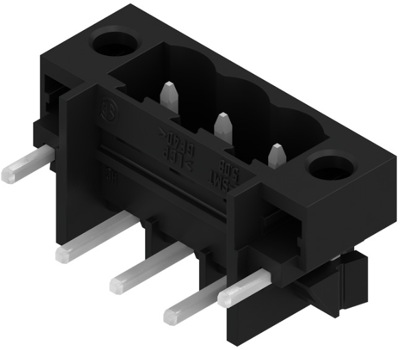

Pin header, 3 pole, pitch 5.08 mm, angled, black, 1877210000
Order No.: 52P4599
EAN: 4032248467778
MPN:
1877210000
SL-SMT 5.08HC/03/270FH 3.2SN BK BX
Unit Price (€ / pc.)
2.023 € *
Available in 6 Days: 500 pcs. - if ordered today
Male connector, 1877210000, Weidmüller
Board Connector, Male Connector, Solder Flange, THT/THR Solder Termination, 5.08 mm, No. of Poles: 3, 270°, 3.2 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 400 V | |
| Rated current | 27.5 A | |
| Grid | 5.08 mm | |
| Number of rows | 1 | |
| Orientation | angled | |
| contact surface | tin-plated | |
| Version | pin header | |
| Colour | black | |
| Connection | PCB connection | |
| Pin number | 3 pole | |
| Additional parts | equipped | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
