1876960000 | Weidmüller

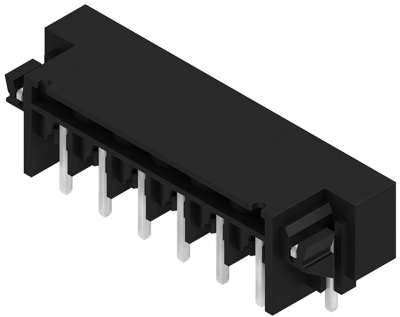

Pin header, 6 pole, pitch 5.08 mm, angled, black, 1876960000
Order No.: 52P4584
EAN: 4032248467617
MPN:
1876960000
SL-SMT 5.08HC/06/270FH 1.5SN BK RL
Unit Price (€ / pc.)
3.5581 € *
Standard delivery time from the manufacturer is: 8 Weeks
Male connector, 1876960000, Weidmüller
Printed circuit board connector, male connector, solder flange, THT/THR solder termination, 5.08 mm, no. of poles: 6, 270°, 1.5 mm, tinned, black, tape (Ø 330 mm).
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | tin-plated | |
| Grid | 5.08 mm | |
| Connection | PCB connection | |
| Number of rows | 1 | |
| Pin number | 6 pole | |
| Orientation | angled | |
| Rated voltage | 400 V | |
| Version | pin header | |
| Rated current | 27.5 A | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
