1876910000 | Weidmüller

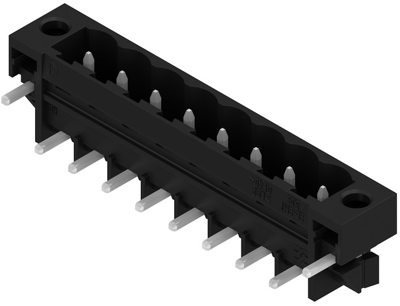

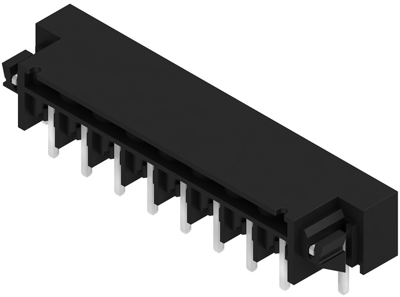

Pin header, 8 pole, pitch 5.08 mm, angled, black, 1876910000
Order No.: 52P4579
EAN: 4032248467495
MPN:
1876910000
SL-SMT 5.08HC/08/270FL 3.2SN BK BX
Unit Price (€ / pc.)
4.0817 € *
Standard delivery time from the manufacturer is: 7 Weeks
Male connector, 1876910000, Weidmüller
Printed circuit board connector, header, solder flange, THT/THR solder termination, 5.08 mm, no. of poles: 8, 270°, 3.2 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 400 V | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Rated current | 27.5 A | |
| Grid | 5.08 mm | |
| Orientation | angled | |
| Version | pin header | |
| Connection | PCB connection | |
| Contact type | pin | |
| Number of rows | 1 | |
| Colour | black | |
| Pin number | 8 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
