1871490000 | Weidmüller
Pin header, 7 pole, pitch 3.81 mm, straight, black, 1871490000
Order No.: 52P4209
EAN: 4032248450312
MPN:
1871490000
SC 3.81/07/180G 3.2SN BK BX
Unit Price (€ / pc.)
2.0944 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
2.09 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0944 €
10 pcs.
1.9397 €
50 pcs.
1.7374 €
*incl. VAT plus shipping costs
Subject to prior sale

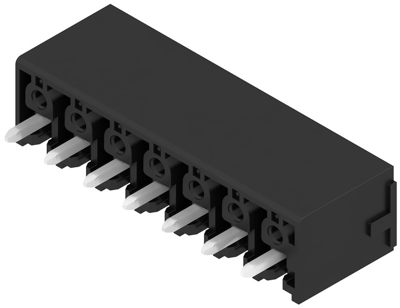

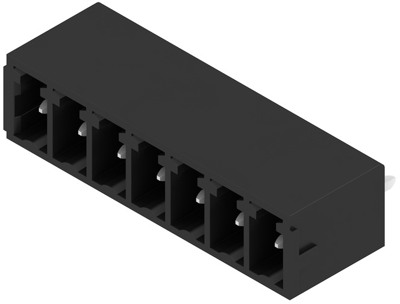

Male connector, 1871490000, Weidmüller
Board Connector, closed side, THT solder termination, 3.81 mm, no. of poles: 7, 180°, 3.2 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 17.5 A | |
| contact surface | tin-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | pin | |
| Grid | 3.81 mm | |
| Orientation | straight | |
| Rated voltage | 320 V | |
| Connection | PCB connection | |
| Pin number | 7 pole | |
| Version | pin header | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
