1871470000 | Weidmüller

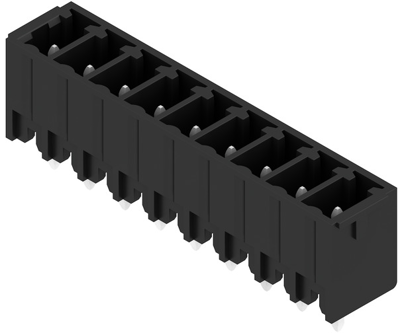

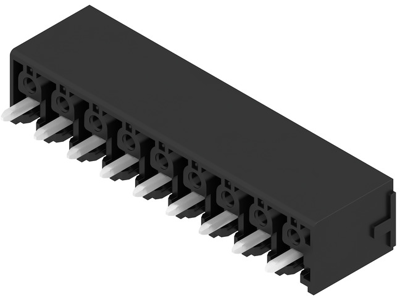

Pin header, 9 pole, pitch 3.81 mm, straight, black, 1871470000
Order No.: 52P4208
EAN: 4032248450268
MPN:
1871470000
SC 3.81/09/180G 3.2SN BK BX
Unit Price (€ / pc.)
2.6894 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
2.69 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6894 €
10 pcs.
2.4990 €
50 pcs.
2.2372 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1871470000, Weidmüller
Printed Circuit Board Connector, Side Closed, THT Solder Termination, 3.81 mm, No. of Poles: 9, 180°, 3.2 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 17.5 A | |
| contact surface | tin-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | pin | |
| Grid | 3.81 mm | |
| Orientation | straight | |
| Rated voltage | 320 V | |
| Connection | PCB connection | |
| Pin number | 9 pole | |
| Version | pin header | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
