1871410000 | Weidmüller
Socket header, 7 pole, pitch 3.81 mm, straight, black, 1871410000
Order No.: 52P4207
EAN: 4032248450213
MPN:
1871410000
BCZ 3.81/07/180 SN BK BX
Unit Price (€ / pc.)
4.1769 € *
Standard delivery time from the manufacturer is: 19 Weeks

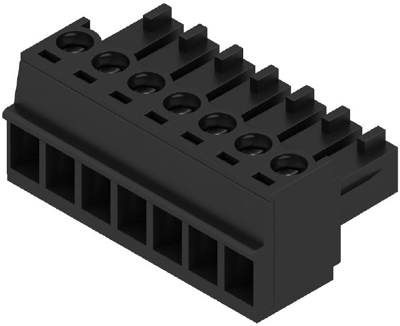

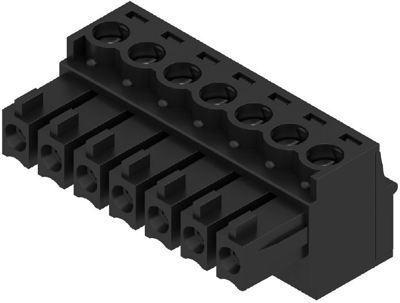

Female connector, 1871410000, Weidmüller
PCB connectors, closed sideways, 3.81 mm, no. of poles: 7, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 17.5 A | |
| contact surface | tin-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | socket | |
| Grid | 3.81 mm | |
| Orientation | straight | |
| Rated voltage | 320 V | |
| Connection | screw connection | |
| Pin number | 7 pole | |
| Version | socket header | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
