1864290000 | Weidmüller

Pin header, 4 pole, pitch 3.81 mm, straight, black, 1864290000

Order No.: 52P3772
EAN: 4032248429363
MPN:
1864290000
SC-SMT 3.81/04/180G 1.5SN BK RL

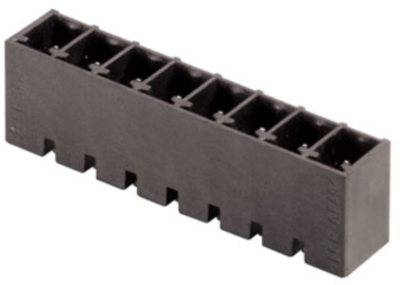

1864290000 Weidmüller PCB Connection Systems Image 1
1864290000 Weidmüller PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.3685 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
1.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.3685 €

Male connector, 1864290000, Weidmüller

Board Connector, lateral closed, THT/THR solder termination, 3.81 mm, no. of poles: 4, 180°, 1.5 mm, tinned, black, tape (Ø 330 mm).

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Contact type pin
Orientation straight
Rated voltage 320 V
Additional parts equipped
Version pin header
Rated current 17.5 A
Grid 3.81 mm
Colour black
Connection PCB connection
contact surface tin-plated
Number of rows 1
Pin number 4 pole
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
