1864260000 | Weidmüller
Pin header, 6 pole, pitch 3.81 mm, straight, black, 1864260000
Order No.: 52P3769
EAN: 4032248429561
MPN:
1864260000
SC-SMT 3.81/06/180LF 1.5SN BK RL
Unit Price (€ / pc.)
2.3324 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Male connector, 1864260000, Weidmüller

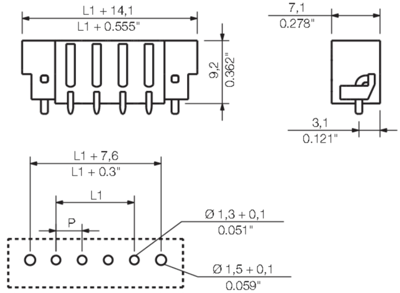

Printed circuit board connector, solder flange, THT/THR solder termination, 3.81 mm, no. of poles: 6, 180°, 1.5 mm, tinned, black, tape (Ø 330 mm); Rs = 10
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
