1864040000 | Weidmüller

Pin header, 16 pole, pitch 3.81 mm, straight, black, 1864040000

Order No.: 52P3751
EAN: 4032248429165
MPN:
1864040000
SC-SMT 3.81/16/180G 1.5SN BK BX

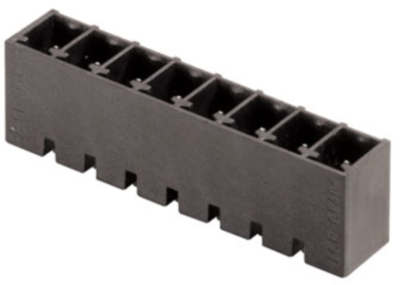

1864040000 Weidmüller PCB Connection Systems Image 1

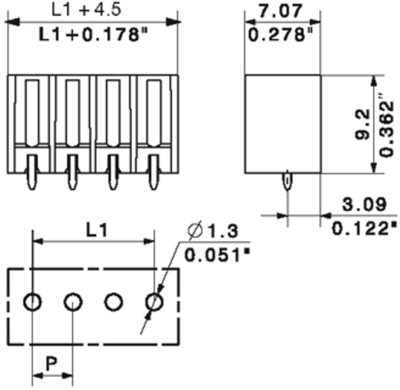

1864040000 Weidmüller PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.7009 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
3.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.7009 €

Male connector, 1864040000, Weidmüller

PCB Connector, lateral closed, THT/THR solder termination, 3.81 mm, no. of poles: 16, 180°, 1.5 mm, tinned, black, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Colour black
contact surface tin-plated
Rated current 17.5 A
Grid 3.81 mm
Pin number 16 pole
Version pin header
Additional parts equipped
Orientation straight
Connection PCB connection
Contact type pin
Rated voltage 320 V
Number of rows 1
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
